Thaum koj nyob nraum engineering lossis procuring rau lub110kV-500kV transformer muajchav kawm, cov ceg txheem ntseeg nyob rau theem sib txawv kiag li. Ntawm cov kab hluav taws xob sib kis no, koj tsis yog tsuas yog tsim cov khoom siv hluav taws xob xwb-koj tab tom tsim ntau - lab -$ hauv cheeb tsam lub neej. Yog tias muaj ntau tshaj - qhov teeb meem fluxing lossis rwb thaiv tsev tawg tshwm sim, qhov ntawd tsis zoo txaus. Tab sis thaum lub tsev mus ncig tsuas yog vim lub txhab nyiaj txias sab nraud pib quaj roj lossis tsis tuaj yeem tswj lub twj tso kua mis? Qhov ntawd yog hom kev ua haujlwm tsis ua haujlwm uas ua rau cov thawj coj siv hluav taws xob tsaug zog thaum hmo ntuj.
Peb txhua tus paub cov tub ntxhais hluav taws xob thiab cov kais hloov pauv tau txais feem ntau ntawm cov teeb pom kev zoo thaum lub sijhawm tsim kev tshuaj xyuas. Tab sis tawm hauv lub vaj, qhov ntsuas hluav taws xob tas mus li thiab muaj peev xwm dhau ntawm EHV chav nyob thiab tuag los ntawm nws cov roj hluav taws xob sab nraud:fais fab transformer radiatorkev sib dhos.
Nrhiav ib tug tshwj xeebtransformer radiator manufacturersuas tuaj yeem ua tau raws li kev siv tshuab, siab, thiab kev tiv thaiv saum npoo ntawm 110kV-500kV tshuab tsis yog hais txog kev tshawb nrhiav slick marketing brochures. Nws yog hais txog kev tshuaj xyuas seb tus neeg tsim khoom tswj kev ntxhov siab, cua sov, thiab chemistry li cas thaum tsis muaj leej twg saib.
Nov yog qhov peb tab tom nrhiav-thiab qhov koj yuav tsum tau thov- thaum ntsuas lub chaw xa khoom hluav taws xob rau siab-voltage thiab ntxiv-siab-voltage grids.
1. Hydraulic Surges thiab Pressure Resistance: Tshaj li qhov ntsuas zoo li qub
Thaum koj nce mus txog 110kV thiab siab dua, kev ua kom txias txias (ONAN) feem ntau muab txoj hauv kev rau cov roj thiab cua tshuab (OFAF lossis ODAF). Lub sijhawm cov siab - cov roj twj tso kua mis muaj peev xwm ncaws tawm thaum lub sijhawm ua haujlwm siab tshaj plaws, lub sijhawm hydraulic shockwave tsoo rau sab hauv ntawm lub taub hau radiator thiab fins.
Tus qauv qis-voltage radiator vaj huam sib luag-tsim los rau tej yam ntuj tso convection yooj yim-yuav flex los yog balloon nyob rau hauv uas instantaneous siab nce. Nyob rau tib lub sijhawm, qhov flexing tas li ua rau cov hlau folds tsis muaj zog.
Thaum kuaj xyuas tus neeg xa khoom rau EHV cov haujlwm, hla qhov tsis meej "siab siab ntsuas" cov lus thov thiab saib ntawm lub cev geometry:
Plate Integrity:Seb koj tab tom qhia520mm dav ntsiab luslos yog compact310mm daim hlau, qhov txias- dov steel thickness yuav tsum nruj tswj hwm (feem ntau 1.2 hli siab- qib Tshuag).
Channel Flow Dynamics:Cov xovxwm roj yuav tsum tau ua kom muaj qhov sib npaug me me: dav txaus kom txo qis hydraulic tsis kam thiab tswjua kom sov dissipation, tsis tau structured nruj txaus los muab inherentsiab tsis kamnyob rau hauv 0.5 mus rau 1.0 bar xeem tej yam kev mob yam tsis muaj qauv deflection.
2. Lub Microscopic Leak hem: Vim li cas Automated Vuam thiab UV NDT teeb meem
Cia peb tham txog txhua tus kws tsim hluav taws xob transformer npau suav phem tshaj plaws: qhov qeeb, ntsiag to roj quaj.
Vimcov radiatorsyog raug rau lub caij ntuj sov tsis tu ncua txhua hnub- nthuav dav raws li kev thauj khoom nce thaum nruab hnub thiab cog lus thaum hmo ntuj- cov weld seams tiv taus cov neeg kho tshuab qaug zog. Yog tias lub Hoobkas tso siab rau kev tuav lub teeb vuam rau lub taub hau cov kav dej lossis cov npoo npoo, tib neeg kev ua yuam kev yog qhov kev zam. Ib me ntsis ntawm slag, me me undercut, los yog inconsistent tshav kub input ua ib tug micro-fissure.
Los lav qhov tseebleak- ua haujlwm dawb, tus neeg muag khoom loj EHV tawm xoom chav rau phau ntawv taws teeb sib txawv:

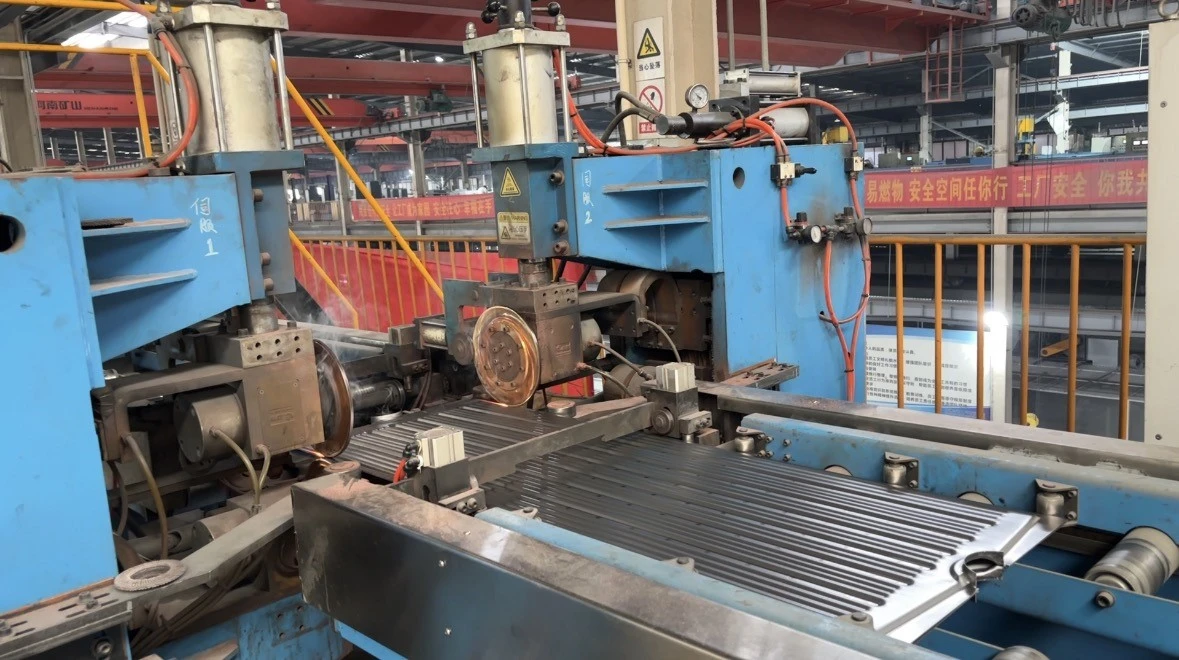

Automated Seam Vuam:Saib rau tag nrho cov neeg hlau seam- vuam kab raws cov npoo npoo thiab cov pob qij txha taub hau. Automation guarantees kev mus los tsis zoo, kev nkag mus rau qhov kub thiab txias, thiab huv,uniform ntouas tsis ntxiab ya raws los yog tsim kev ntxhov siab concentrators.
Fluorescent Penetrant Inspection:Cov huab cua txheem- cov kev sim npuas submersion yog qhov zoo rau cov chav faib me me, tab sis lawv plam sub- millimeter micro- porosities. Rau 110kV-500kV iav, txhua lub taub hau sib koom ua ke thiab cov hauv paus hniav yuav tsum tau tshawb xyuas nrog kev ntsuas ultraviolet fluorescent penetrant ua ntej tsoo cov xim xim. Yog tias muaj micro-fissure nkaum hauv cov ntiv taw vuam, UV teeb ntes nws tam sim ntawd.
3. Sib ntaus Corrosion nyob rau hauv Tight Gaps (C4 rau C5-M Demands)
EHV substations tsis tshua tsim nyob rau hauv ib puag ncig zoo. Lawv tau muab tso rau ze ntawm ntug dej hiav txwv qhov chaw tsaws rau sab ntug dej hiav txwv cua, sab hauv cov chaw muaj kuab paug hnyav heev, lossis tawm hauv cov hav dej sov.
Qhov loj tshaj plaws tsim vulnerability ntawm ib yamhluav taws xob radiatoryog qhov nruj 45mm qhov sib txawv ntawm cov khoom. Cov kab nqaim no ib txwm cuab ntsev tsuag, plua plav, thiab sawv ntsug. Yog hais tias qhov kev npaj nto yog rushed, xeb yuav pib noj los ntawm cov hlau los ntawm sab hauv ntawm qhov fins sab nraud.
Txhawm rau ua tiav qhov tseeb 30+ xyoolub neej ua haujlwm ntev, txoj kev kho saum npoo yuav tsum nruj:
Sa 2.5 txhaj tshuaj-Blasting:Raw steel sib dhos yuav tsum dhau los ntawm kev txhaj tshuaj tsis siv neeg- blasting kom strip txhua kab ntawm zeb nplai, tsim kom muaj cov cuab yeej ntse ntse rau xim adhesion.

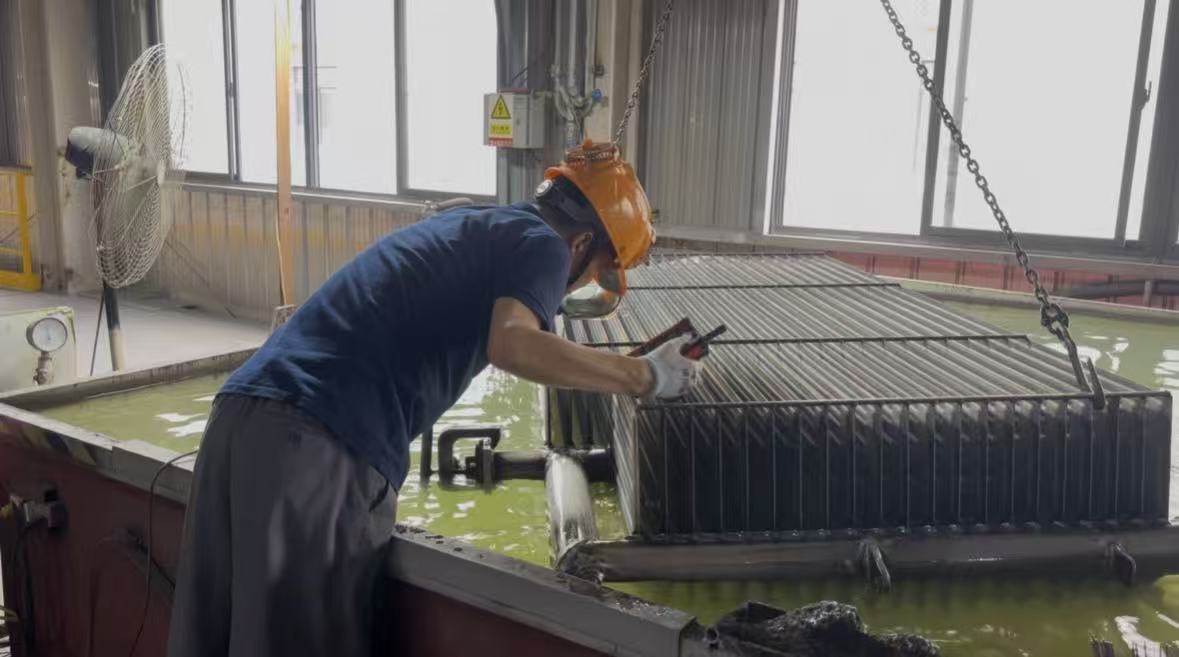

Flow-Txoj kev nkag mus:Cov phom tshuaj tsuag ib txwm tsis tuaj yeem ncav cuag tob rau hauv qhov chaw ntawm ntau -element radiator bank. High-kawg fabricators siv automated flow- txheej los yog electrostatic dip systems uas yuam zinc- nplua nuj primers, intermediate epoxies, thiab polyurethane topcoats tob rau hauv lub nruj fin recesses, ua tiav C4 rau C5-M marine-qib ntsuam xyuas.
Kub-Dip Galvanizing (HDG):Rau qhov tsis zoo ntawm cov huab cua phem tshaj plaws, paub meej tias tus neeg muag khoom tuaj yeem ua kom kub -dip galvanizing ib ISO 1461 yam tsis muaj warping lub nyias daim hlau thaum lub sij hawm molten zinc dip.
4. Precision Tolerances: Tshem tawm "Force Assembly" ntawm lub khw hauv pem teb
Yog tias koj puas tau tswj hwm lub tshuab hluav taws xob sib dhos hauv pem teb, koj paub qhov kev ntxhov siab ntawm lub txhab nyiaj radiator uas tshwm sim nrog lub taub hau flange uas tawm ntawm tsuas yog 3 lossis 4 millimeters.
Thaum qhov chaw nruab nrab - mus rau - nruab nrab qhov deb (uas tuaj yeem ncav cuag li 4000mm ntawm cov units loj) tsis phim tus npauj npaim valve flanges ntawmtransformer roj tank, cov neeg ua haujlwm nyob rau hauv pem teb raug ntxias kom siv cov pas nrig lossis crane hoists kom yuam cov headers rau hauv qhov chaw. Qhov ntawd ua rau muaj kev ruaj ntseg, ua ntej - muaj kev sib zog ua haujlwm ntawm lub tank li qub thiab lub taub hau welds ua ntej lub tshuab hloov pauv txawm tias muaj zog.
Ib tug txhim khu kev qhatransformer radiator manufacturersnkag siab tias cov ntawv hlau fabrication rau siab -voltage transformers yuav tsum kam rau siab ze rau CNC machining:
Lub taub hau yeeb nkab qhov chaw nruab nrab, flange lub ntsej muag squareness, thiab mounting qhov pitches yuav tsum nruj me ntsis jig- txheeb xyuas.
Txawm hais tias koj tab tom txuas rau tus qauvroj tank transformerlayout los yog detachedtransformer roj ciatxias skid, koj tus neeg muag khoom yuav tsum tuaj yeem nqa koj cov qauv 3D CAD (STEP, DWG) thiab co-engineer lub flange interface ncaj qha.
Cia peb tshuaj xyuas koj qhov EHV Cooling Specs
Thaum kawg ntawm lub hnub, koj yuav tsum tsis txhob xaiv ntawm nruj Tier -1 catalog markups thiab cov neeg muag khoom pheej yig uas kho radiator fabrication zoo li yooj yim ductwork.
Yog tias tam sim no koj tab tom tsim lub 110kV-500kV fais fab transformer kab, sib tw ntawm kev siv hluav taws xob xa hluav taws xob, lossis sim daws qhov teeb meem hneev taw tsis yooj yim rau ib qho.fais fab transformer radiatorretrofit, cia saib cov duab kos ua ke.
Xa hla koj qhov chaw nruab nrab - mus rau -qhov loj me, cov ntsiab lus ntawm lub taub hau flange, lossis kev ntsuas cua sov (PDF, DWG, lossis STEP). Peb pab neeg ua haujlwm engineering yuav tshuaj xyuas koj qhov tshwj xeeb siab, tus nqi ntws, thiab kev ua haujlwm siab ntev, thiab xa cov lus pom zoo tsim khoom huv, pob tshab hauv 48 teev.
